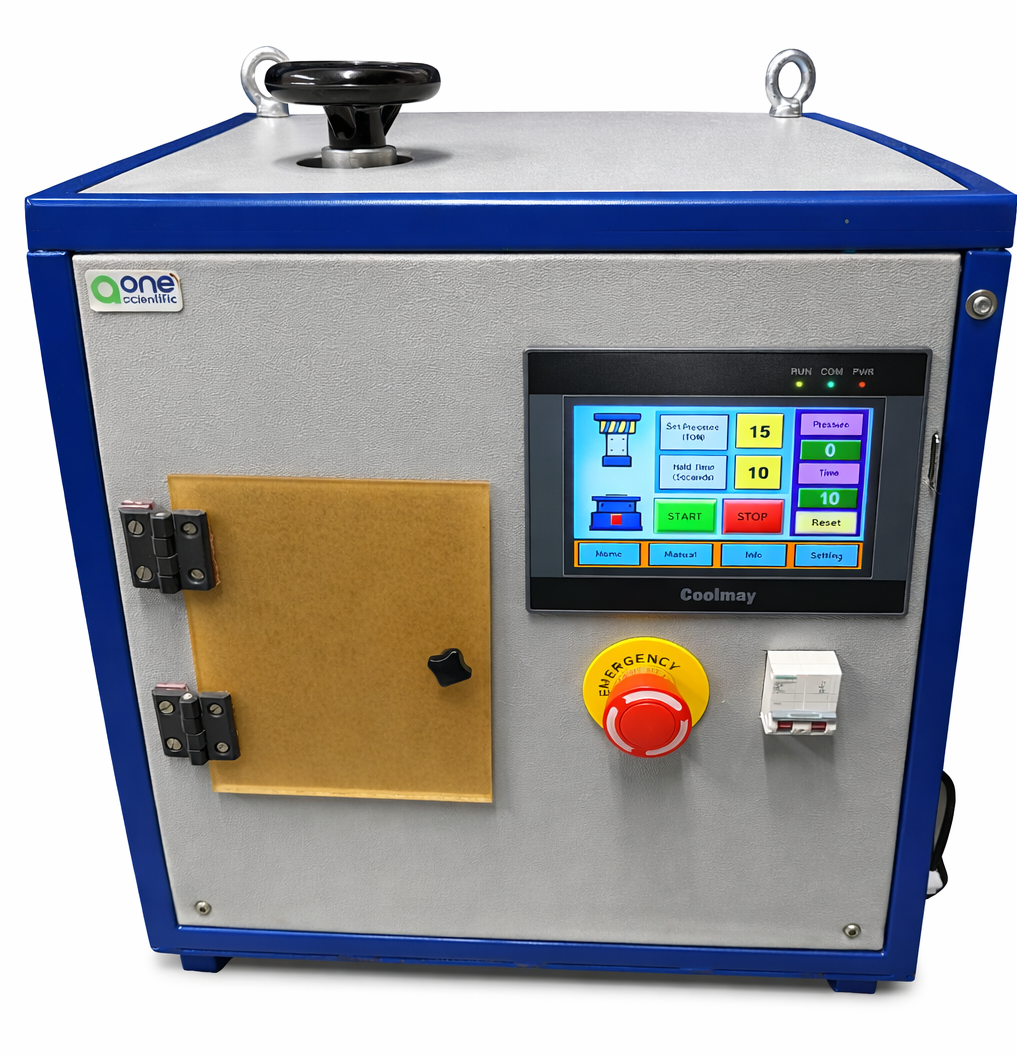

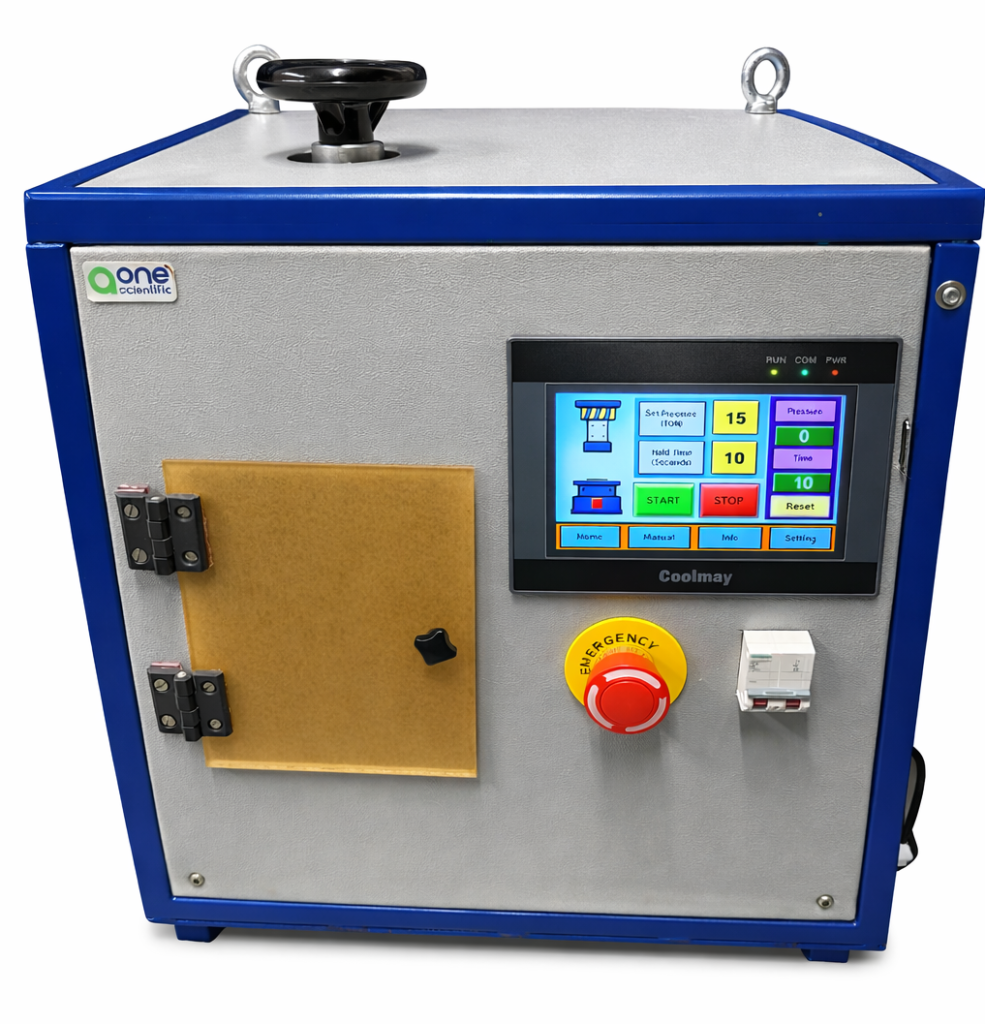

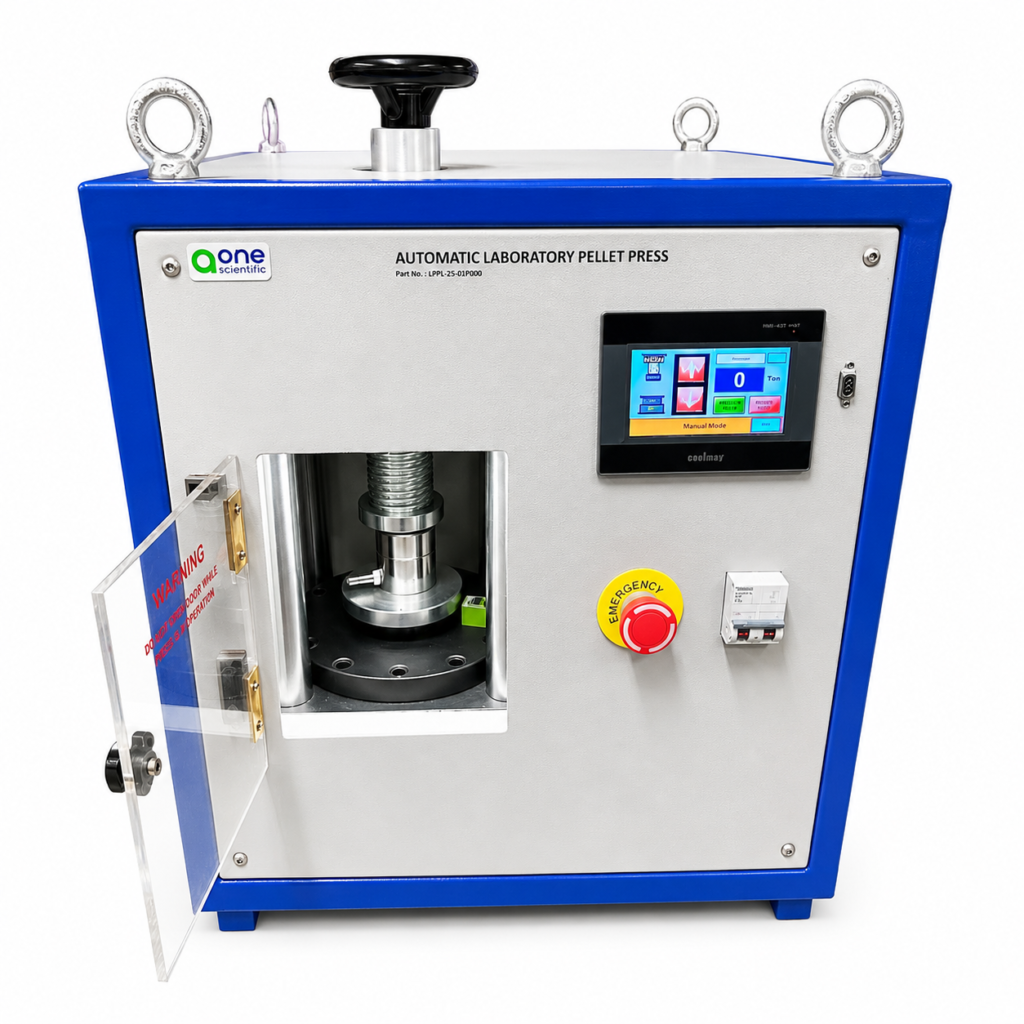

Automatic Programable Pellet Press 40 Ton

aonescientific.com > Products > Automatic Programable Pellet Press 40 Ton
Automatic Programable Pellet Press 40 Ton

Automatic Programable Pellet Press 40 Ton

Product Specification:

  • Product Name: Automatic Programmable Pellet Press
  • Capacity: 40 Ton
  • Brand: Aone Scientific
  • Type: Fully Automatic Hydraulic Pellet Press
  • Maximum Pressing Force: 40 Tons
  • Pressure Control: Digital & Programmable
  • Control System: PLC / Microprocessor Based
  • Operation Mode: Automatic Pressurization
  • User Interface: Digital Display / Touch Screen
  • Pressure Accuracy: High precision digital control
  • Working Area: Suitable for standard laboratory pellet dies
  • Stroke Length: Approx. 40–50 mm
  • Hydraulic System: High-quality hydraulic pump
  • Power Supply: 220 V AC, 50/60 Hz, Single Phase
  • Safety Features: Safety guard / transparent protective cover
  • Construction: Heavy-duty steel frame
  • Operating Temperature: 10 °C to 40 °C
  • Applications: Pellet preparation for XRF / XRD analysis
  • Accessories: Standard pressing tools, Power cable, User manual
  • Optional Accessories:Different pellet die sizes
  • Country of Origin: India
Category:

Description

The Fully Automatic Programable Pellet Press 40 Ton Pressure Lab is a high-performance laboratory press designed for automated compaction of powders into uniform pellets under precisely controlled pressure. It features programmable pressure ramps, dwell times, and automatic pressure release for reproducible pellet production — ideal for material science, analytical laboratories, metallurgy, ceramics, battery research, and XRF/XRD sample preparation. Equipped with a robust hydraulic system, automatic control panel, and safety features, this unit significantly improves efficiency, accuracy, and repeatability compared with manual presses.
