Product Specification:-

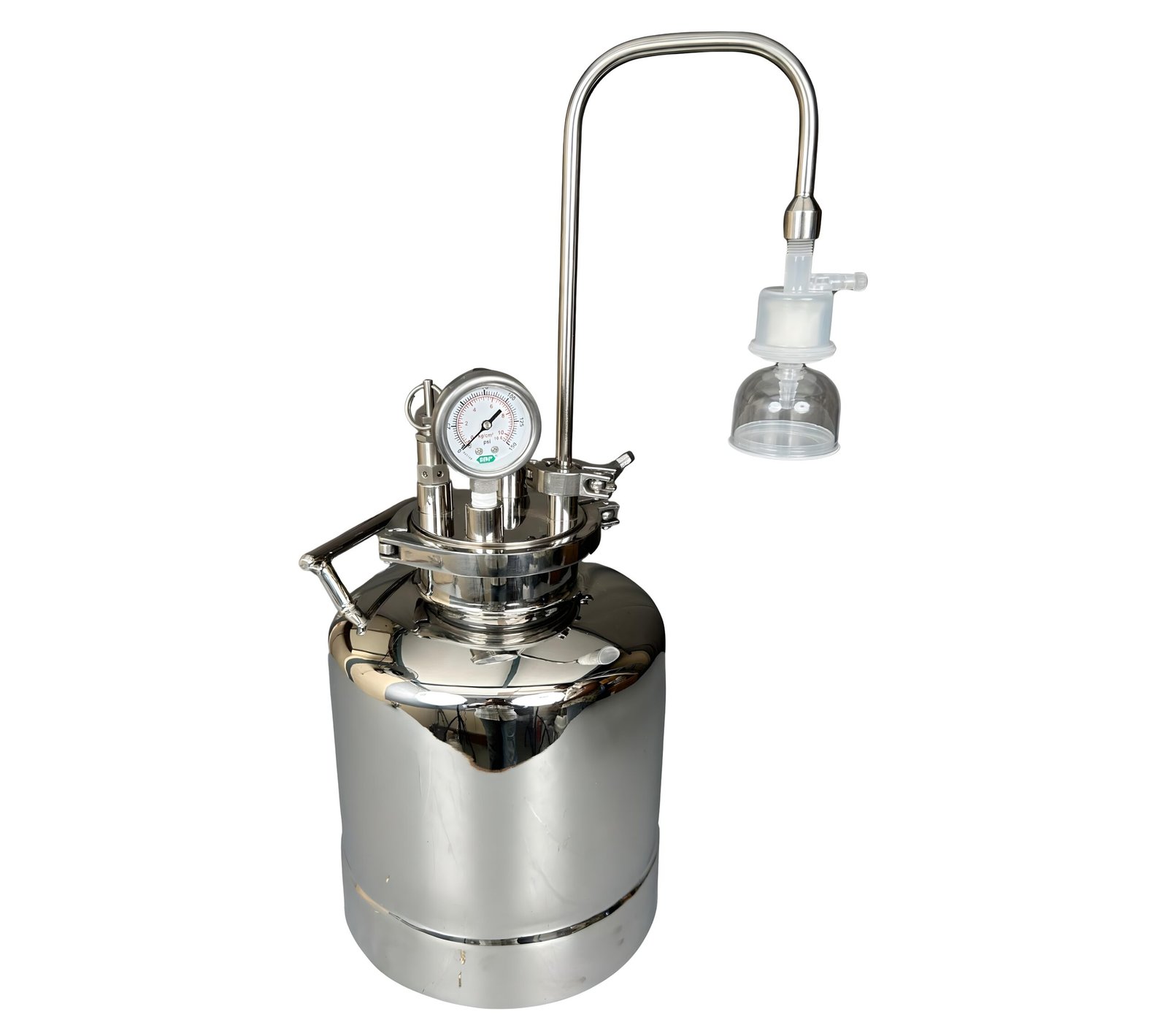

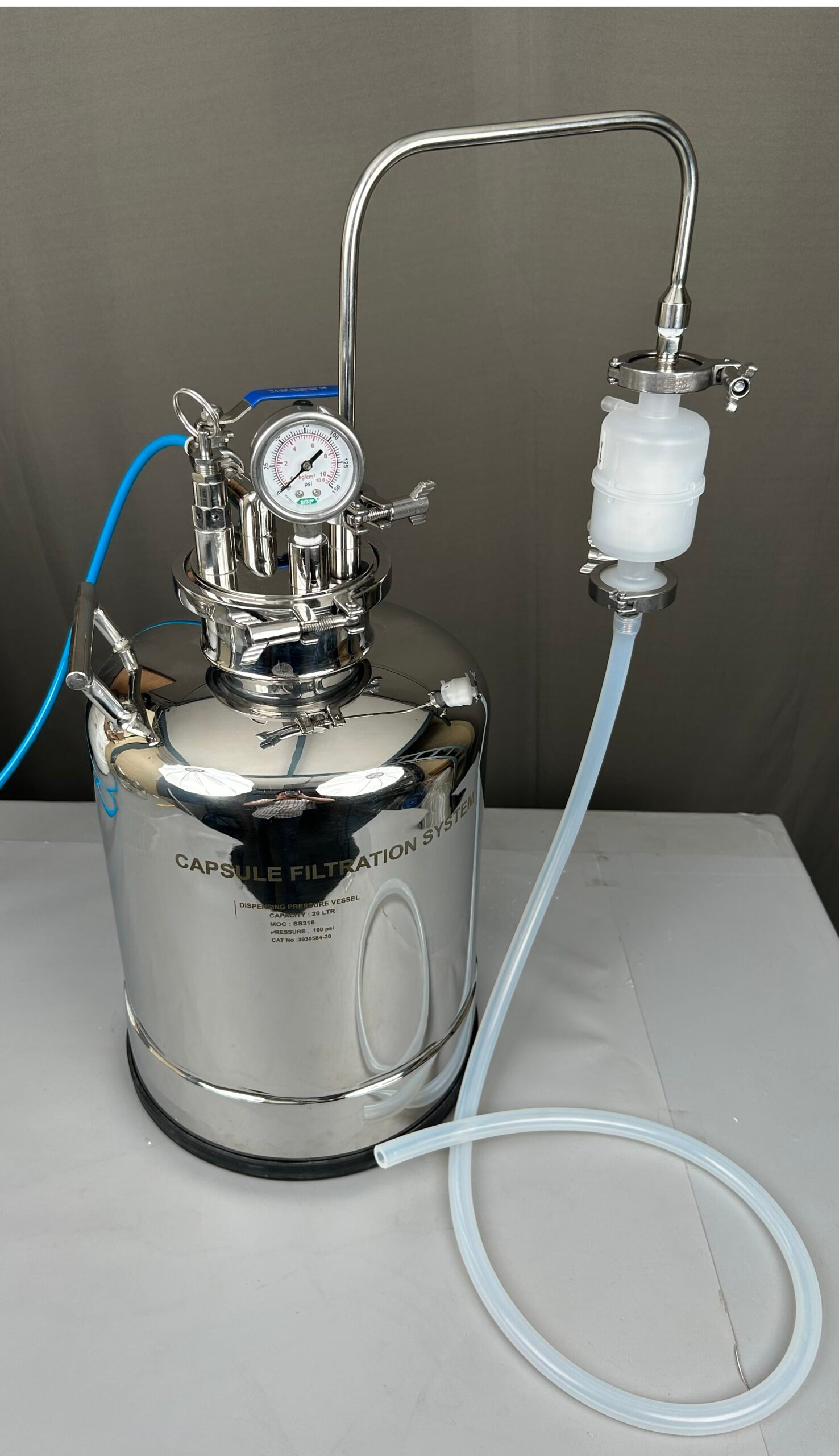

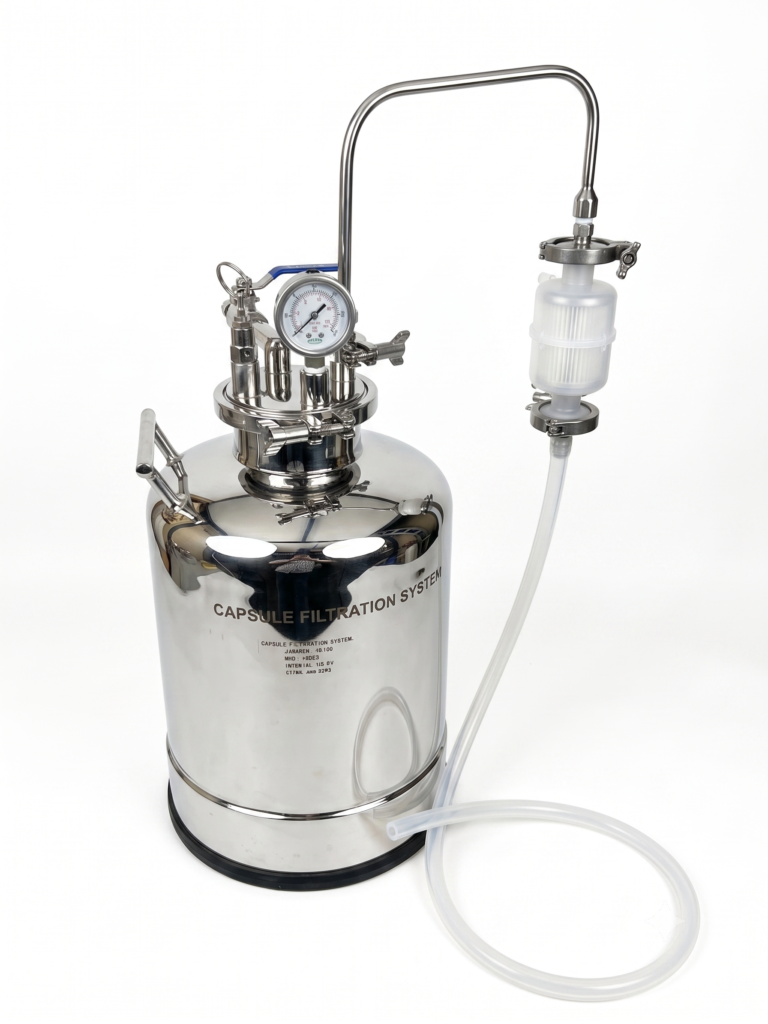

• Product Type : Capsule Filtration System / Capsule Filter
• Construction : All-in-one sealed filter cartridge with housing
• Filtration Medium : PTFE, PVDF, PES, Nylon, or Polypropylene (as per application)
• Filter Diameter : 50 mm, 70 mm, 100 mm, or 150 mm (depending on model)
• Effective Filtration Area : 400–1800 cm² (varies by size)
• Inlet / Outlet Connection : ¼” or ½” hose barb / NPT / sanitary tri-clamp
• Max Operating Temperature : 60°C – 80°C (depending on material)
• Flow Rate : Up to 10–50 L/min (depends on model and fluid)
• Body Material : Polypropylene (PP) or PVDF
• Sealing Method : Thermal bonded (no adhesives or solvents)
• Chemical Compatibility : Compatible with aqueous solutions, solvents, and gases
