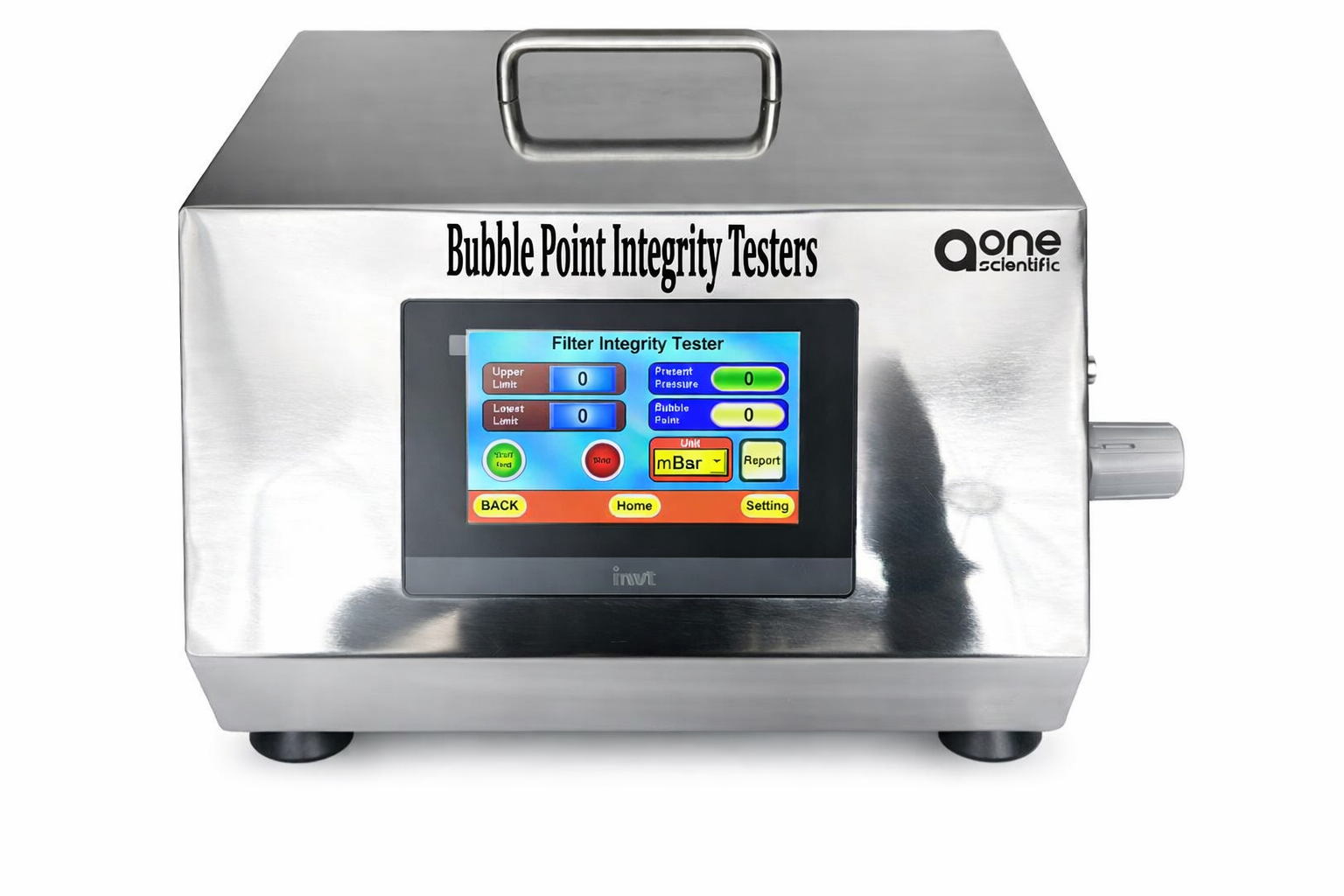

Filter Integrity Testing Machine

aonescientific.com > Products > Filter Integrity Testing Machine
Filter Integrity Testing Machine

Filter Integrity Testing Machine

Product Specification:

  • Product Name: Filter Integrity Testing Machine
  • Brand: Aone Scientific / (Millipore-Type Compatible)
  • Model: FIT-1000 (example model)
  • Test Methods Supported: Bubble Point Test
  • Testing Range: Bubble Point: 100–8,000 mbar (approx.)
  • Number of Channels: Single / Dual Channel (optional)
  • Membrane Compatibility: Hydrophilic & Hydrophobic Filter Cartridges, Capsules & Discs
  • Display: 7″ Touchscreen Color Display
  • Control: PLC + HMI with Intuitive GUI
  • Data Output: USB Export (CSV, PDF)
  • Data Storage: ≥ 10,000 Test Records with Graphs
  • Interface Language: English (other languages optional)
  • Accuracy: Bubble Point: ±50 mbar (typical)
  • Power Supply: 100–240 VAC, 50/60 Hz
  • Power Consumption: ~150–300 W
  • Operating Temperature: 5–40 °C
  • Relative Humidity: 10–80% RH (non-condensing)
  • Country of Origin: India
Category:

Description

A Filter Integrity Testing Machine is a precision laboratory/in-process instrument used to assess whether a filter element (e.g., membrane cartridge, capsule, depth filter) is intact and capable of performing its intended retention of contaminants such as bacteria or particulates. It performs non-destructive integrity tests to confirm the filter’s pore structure and detect leaks or defects prior to installation, after sterilization, or during routine process validation. These tests are essential for ensuring product sterility, quality control, and compliance with industry standards such as Good Manufacturing Practice (GMP) and regulatory requirements
