Product Specification:-

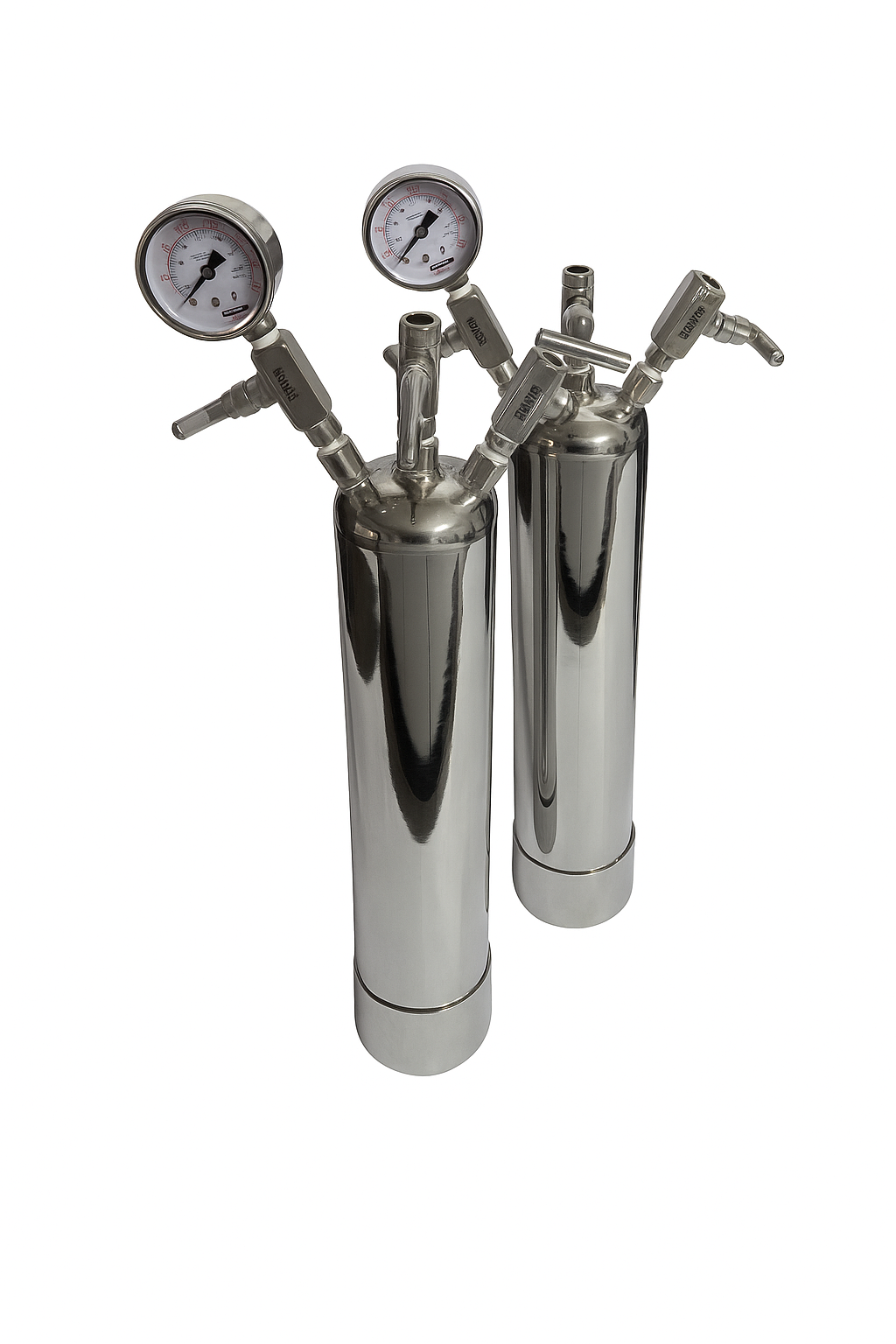

• Product Name : Gas Sampling Cylinder with Dip Line Tube
• Material of Construction : High-grade Stainless Steel (SS 304 / SS 316 / SS 316L)
• Capacity : 300 ml to 5 Litres (customizable)
• Working Pressure : Up to 200 bar (standard), higher pressure available on request
• Temperature Range : -20 °C to +200 °C (depending on design)
• Dip Tube : Stainless steel dip line tube for accurate bottom sampling
• End Connections : High-pressure valves (needle / ball type) at both ends
• Valves : Two-valve configuration for inlet & outlet
• Sealing : PTFE / Viton / Metal-to-metal sealing (as per gas compatibility)
• Surface Finish : Polished internal & external surface for contamination-free sampling
• Mounting : Portable, with optional brackets or protective frame
• Testing : 100% Hydrostatic & Pneumatic pressure tested
• Safety Features : Pressure relief device / burst disc on request
• Application : Used for collecting pressurized gas samples from pipelines, reactors, or process lines for laboratory analysis
• Standards : Manufactured as per ASTM / IS / API sampling guidelines
