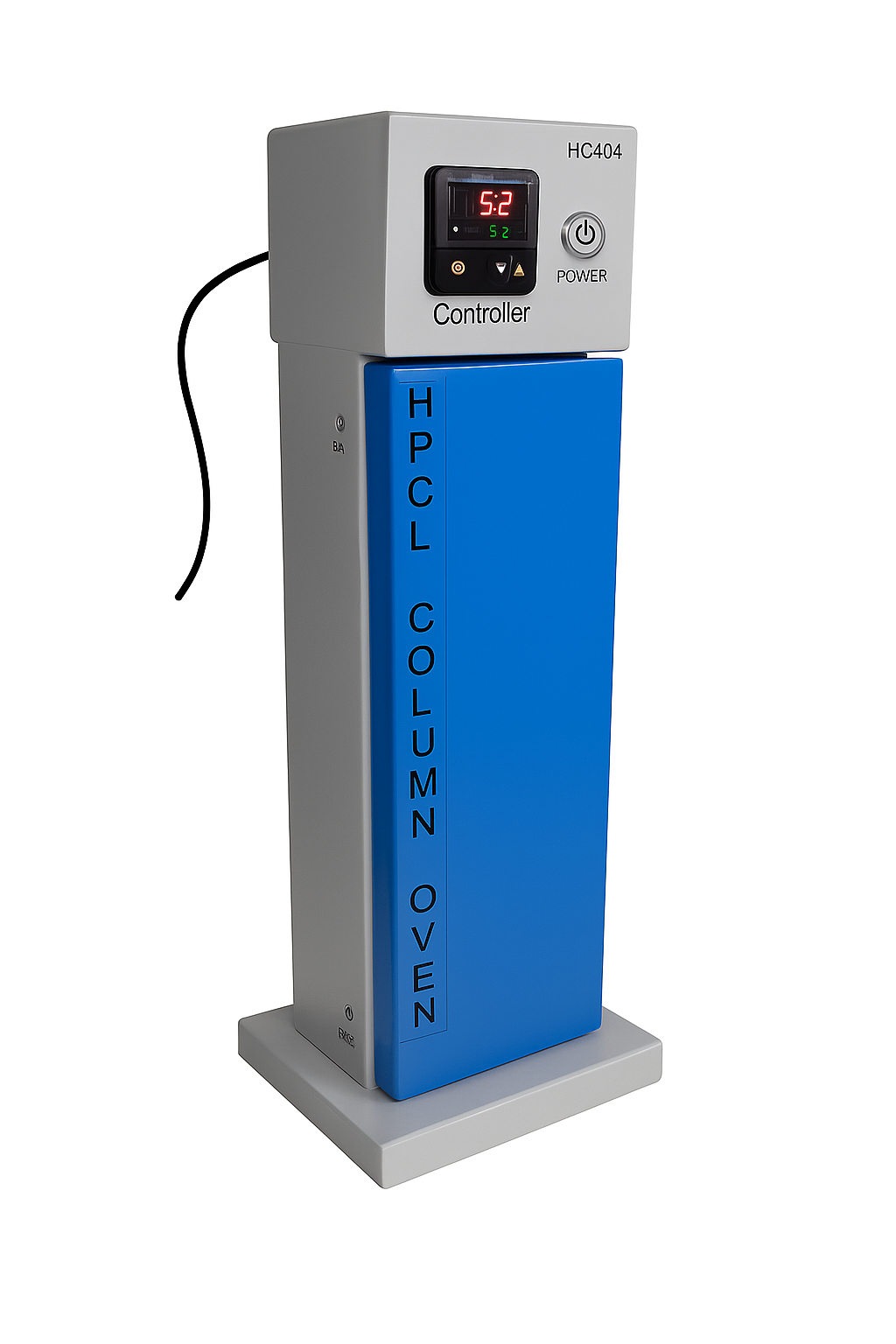

HPLC Column Oven

aonescientific.com > Products > HPLC Column Oven
HPLC Column Oven

HPLC Column Oven

Product Specification:-

  • Temperature Range : Ambient +5°C to 80°C (optional models up to 120°C)
  • Temperature Accuracy : ±0.1°C
  • Temperature Stability : ±0.2°C
  • Heating Method : Forced air circulation / Peltier-based heating
  • Column Capacity : Compatible with multiple columns (typically 1–4 columns depending on size)
  • Column Length Supported : Up to 300 mm standard
  • Material of Construction : Powder-coated steel / Aluminum housing
  • Display Type : Digital temperature display (LED/LCD)
  • Control Type : Microprocessor-based PID controller
  • Power Supply : 220–240V AC, 50/60 Hz
  • Safety Features : Over-temperature protection, automatic shut-off
  • Compatibility : Suitable for all major HPLC systems (Agilent, Shimadzu, Waters, Thermo, etc.)
  • Applications : Used in analytical, pharmaceutical, chemical, and research laboratories
  • Dimensions (Approx.) : 300 mm × 250 mm × 200 mm (varies by model)
Category:

Description

The HPLC Column Oven is designed to maintain precise and stable temperature control for chromatographic columns, ensuring consistent retention times and improved separation reproducibility. By providing uniform heating, it minimizes temperature fluctuations that can impact analytical accuracy and peak shape. Constructed with robust materials and featuring advanced temperature regulation, this oven supports a wide range of column dimensions and is compatible with all major HPLC systems. It enables efficient analysis of thermally sensitive compounds and ensures optimal chromatographic performance in both research and industrial laboratories.
