Product Specification:-

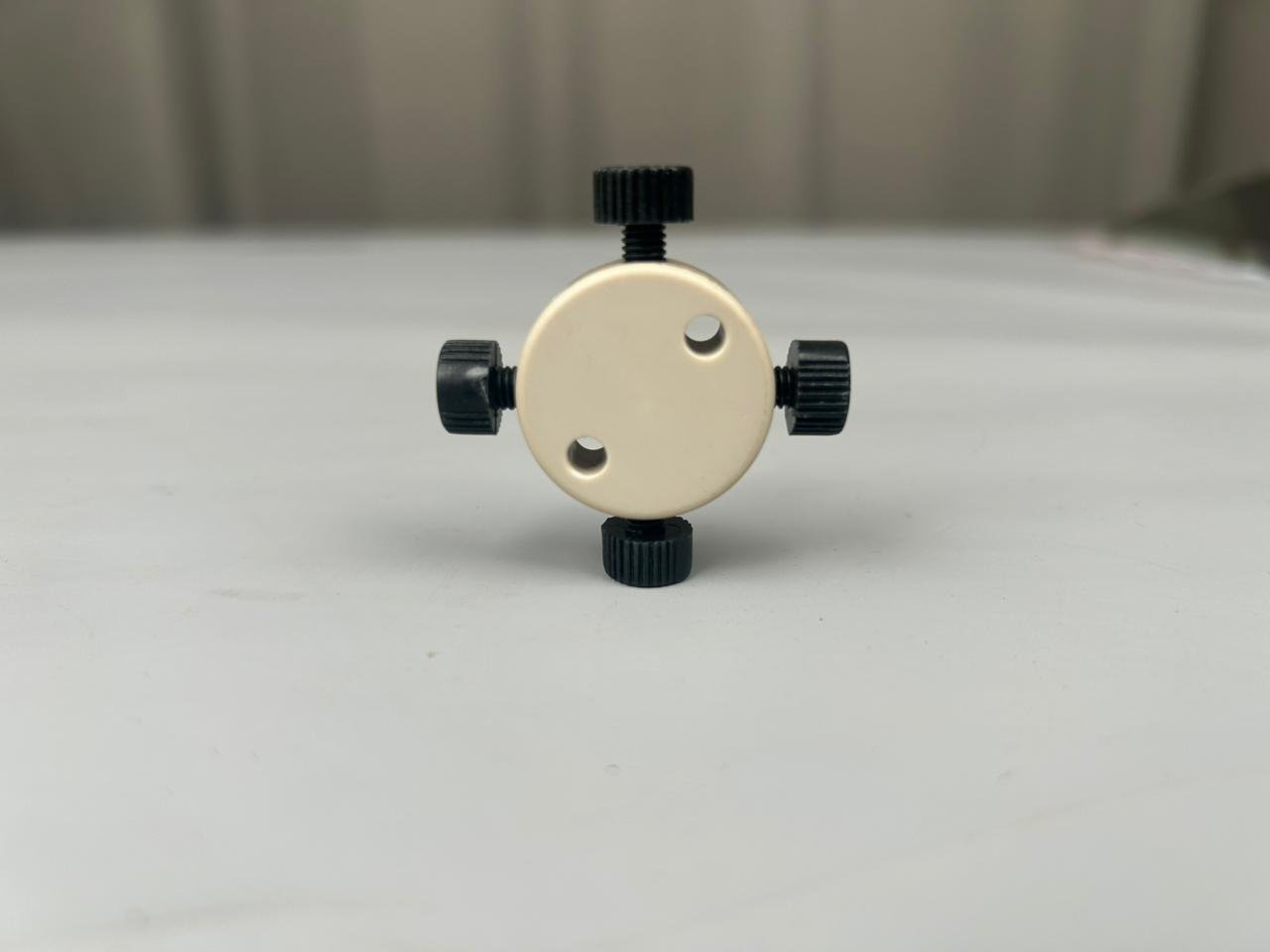

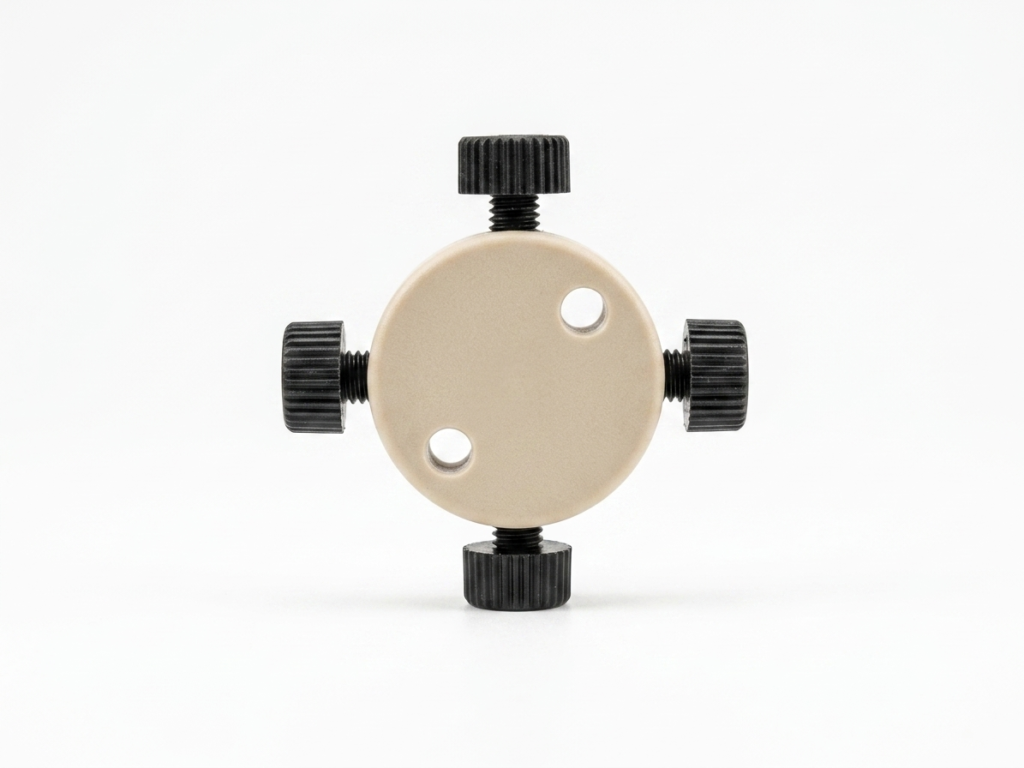

• Product Type : PEEK Cross (4-Way Connector)
• Material of Construction : Virgin PEEK (Polyether Ether Ketone)
• Color : Natural / Beige
• Connection Type : Cross (4-way connection)
• Port Configuration : 4 Ports (Equal / Reducing options available)
• Thread Type : 10-32 UNF / 1/4-28 UNF
• Tubing Compatibility : Suitable for 1/16″, 1/8″ OD tubing
• Bore Size : 0.25 mm / 0.50 mm / 0.75 mm / 1.0 mm (customizable)
• Flow Path : Low dead volume / Zero dead volume options available
• Pressure Rating : Up to 1500 psi (1/16″) / 500 psi (1/8″) (depending on tubing & design)
• Operating Temperature : Up to 100°C (continuous use)
• Chemical Resistance : Resistant to acids, bases & organic solvents
• Thread Design : 1/4-28 flat-bottom or 10-32 coned ports for secure connection
• Sealing Type : Compression fitting with ferrule / flangeless fittings
• Biocompatibility : Inert and bio-compatible material
• Compatibility : Suitable for HPLC, UHPLC, chromatography systems
• Applications : Fluid distribution, mixing, splitting in analytical & laboratory systems
• Features : Low dead volume, leak-proof connection, corrosion-free, lightweight, durable construction
• Brand : Aone Scientific
