Peek Tee Joint

Peek Tee Joint

Product Specification:-

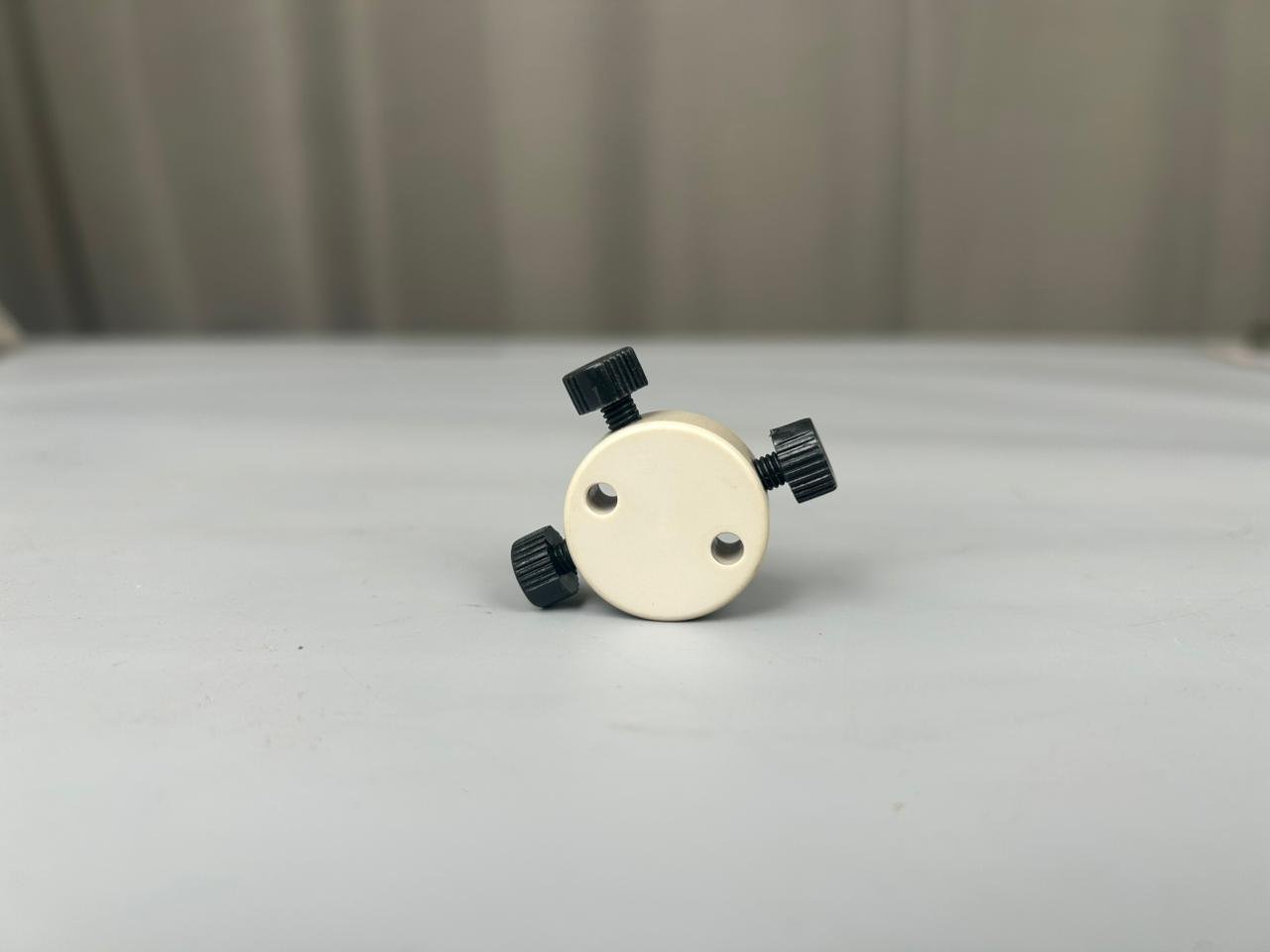

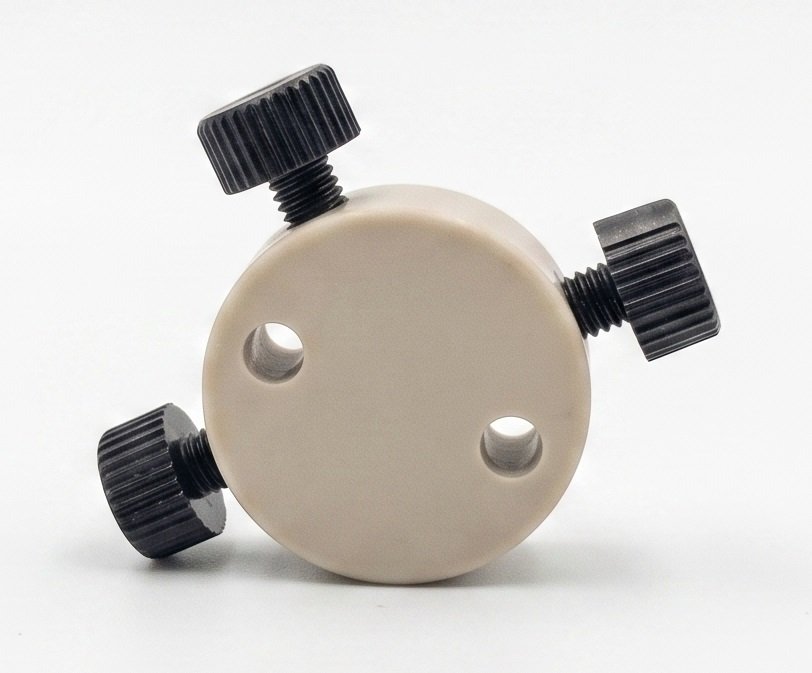

  • Product Type : PEEK Tee Joint (3-Way Connector)
  • Material of Construction : Virgin PEEK (Polyether Ether Ketone)
  • Color : Natural / Beige
  • Connection Type : Tee (3-way connection)
  • Port Configuration : 3 Ports (Equal / Reducing type available)
  • Thread Type : 10-32 UNF / 1/4-28 UNF
  • Tubing Compatibility : Suitable for 1/16″, 1/8″ OD tubing
  • Bore Size : 0.25 mm / 0.50 mm / 0.75 mm / 1.0 mm (customizable)
  • Pressure Rating : Up to 5000 psi (depending on size & application)
  • Operating Temperature : Up to 100°C (continuous use)
  • Chemical Resistance : Resistant to acids, bases & organic solvents
  • Flow Path : Low dead volume / Zero dead volume options available
  • Sealing Type : Compression fitting with ferrule / finger-tight design
  • Finish : Precision-machined smooth internal bore
  • Biocompatibility : Non-reactive and bio-inert material
  • Compatibility : Suitable for HPLC, UHPLC, LC-MS systems
  • Applications : Chromatography, fluid splitting/combining, laboratory analysis
  • Features : Leak-proof connection, high pressure resistance, low dead volume, corrosion-free, durable construction
  • Brand : Aone Scientific
Category:

Description

A PEEK tee joint is a type of connector used in fluid handling systems, such as those found in HPLC (High-Performance Liquid Chromatography), GC (Gas Chromatography), and chemical processing applications. It is designed to connect three pieces of tubing at a T-shaped junction. These connectors are made from PEEK (Polyether Ether Ketone), a highperformance thermoplastic that is known for its chemical resistance, high-temperature tolerance, and mechanical strength. PEEK tee joints are used to split or merge fluid flow in a fluid handling system, making them crucial components in many lab and industrial applications where secure, leak-proof, and reliable connections are necessary.
